How customised enclosures, integrated illumination, and optimised data interfaces deliver field-ready machine vision performance
From Board-Level Cameras to Tailored Industrial Devices
Modern industrial automation, medical diagnostics, and robotic inspection systems rarely present ideal physical conditions. Space constraints on production lines, harsh environmental exposure, difficult part geometries, and precise lighting requirements often make standard off-the-shelf industrial cameras impractical.
Instead of compromising on performance or forcing bulky third-party accessories into a tight footprint, our engineering team builds tailored camera devices tailored specifically for your target application. By utilising high-grade industrial board-level cameras as the core imaging engine, we deliver fully integrated, rugged, and single-unit vision devices ready for direct machine integration.
The Foundation: High-Performance Board-Level Engines

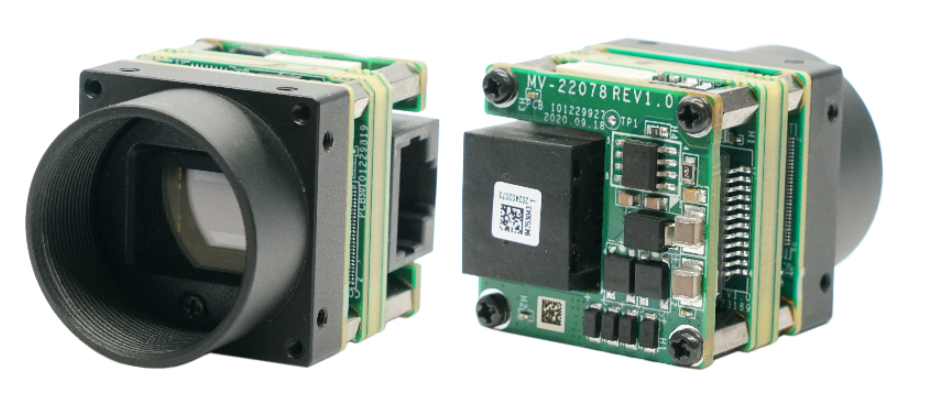

The core of our custom imaging devices relies on industry-proven board-level camera architectures, such as the Hikrobot CB Series board-level industrial cameras.

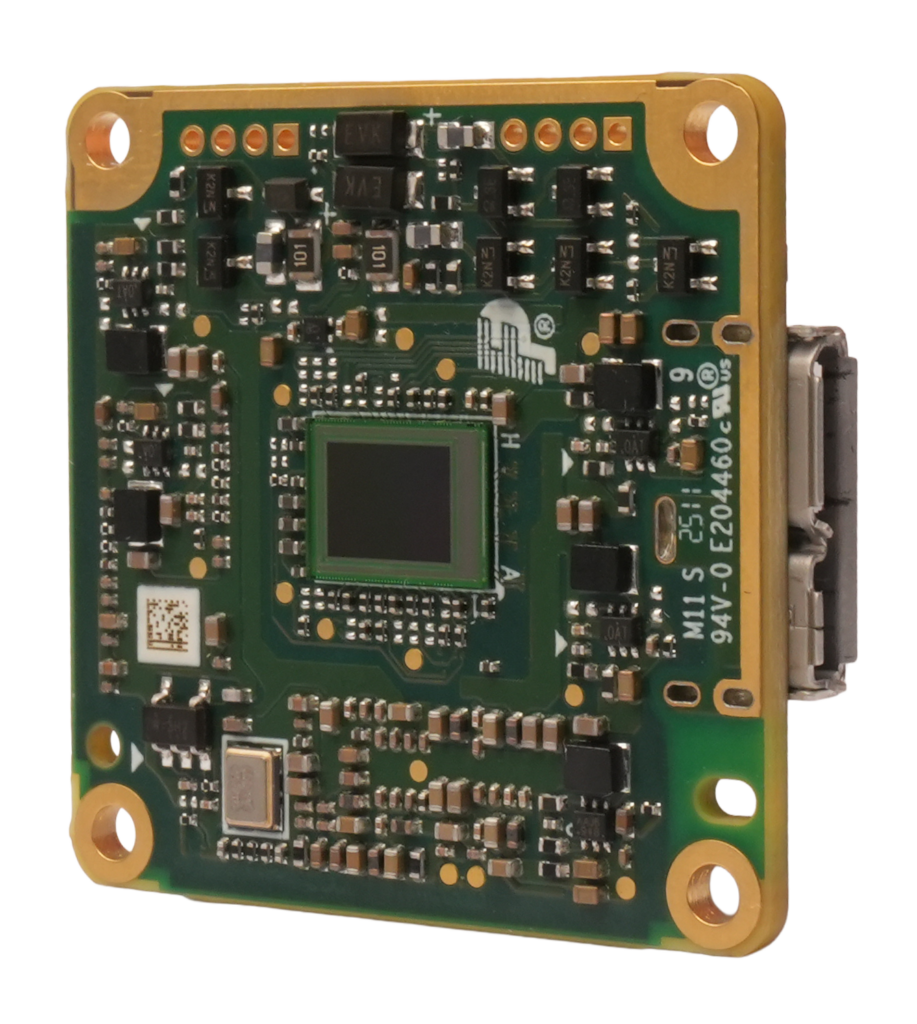

Board-level cameras provide all the raw sensor capabilities, high frame rates, and exceptional image resolution of full-body industrial cameras, but without the bulky exterior box. This modular, bare-board footprint gives us the complete freedom to design a surrounding system around your physical and optical requirements.
Why Start with a Board-Level Module?
- Compact footprint: Unencumbered by standard box housings, sensor boards fit into ultra-tight machine spaces.
- Direct thermal coupling: Custom housing designs allow direct heat dissipation from the sensor board to the outer metal casing.
- Flexibility in optics: Supports varied lens mounts (S-mount/M12, C-mount, custom optics) directly integrated into the body casing.
- Cost efficiency: Eliminates duplicate enclosures and unnecessary standard connectors.
Tailoring Every Aspect of the Camera System
A truly bespoke camera device is more than just a housing—it is a complete, harmonised optoelectronic unit. When designing a custom system for your application, we engineer every critical parameter:
1. Integrated Application Lighting
Lighting is often 80% of the success in any machine vision task. Instead of mounting external light bars or bulky ring lights that require separate power drivers and mounting brackets, we integrate specialized LED light engines directly into the camera enclosure.
- Custom Geometry: Diffuse ring lights, coaxial illumination, low-angle darkfield, or multi-angle strobe arrays.
- Wavelength Optimisation: Ultraviolet (UV), Infrared (IR), narrow-band visible spectrum, or polarized lighting designed for reflective or low-contrast targets.
- Synchronised Control: Direct internal trigger synchronization between sensor exposure and LED pulsing for strobe applications.
2. Custom Enclosure Shape and Environmental Protection
Every machine geometry is different. We design custom CNC-machined aluminum or high-grade additive housings tailored to your exact mounting footprint.
- Form Factor: Angled housings, cylindrical probes, low-profile flat packs, or robotic end-effector housings.
- Environmental Protection: Ingress protection ratings up to IP65/67/69K for washdown, chemical, or high-dust environments.
- Thermal Management: Integrated passive heat sinks or active thermal paths for sustained high-temperature operations.
3. Power Requirements & Electrical Architecture
Industrial systems run on varied power standards. We adapt the device’s internal power supply conditioning to match your host machine:
- Wide DC voltage input ranges (e.g., 12V–24V DC industrial power).
- Single-cable Power over Ethernet (PoE) or custom Power-over-Cable configurations.
- Galvanic isolation and surge protection for electrically noisy manufacturing environments.
4. Interfacing & High-Speed Data Transmission
Getting data reliably from the sensor to your processing unit is vital. We build tailored wiring and interface solutions based on your bandwidth and cable-run requirements:
- Connectors: Robust industrial M12, Hirose, or locking USB3/GigE connectors tailored to standard drag-chain usage.
- Protocol Selection: USB3 Vision, GigE Vision, CoaXPress, or specialized high-speed flexible flat cables (FFC) for OEM embedding.
- On-board Processing: Embedded vision options for real-time trigger handling or pre-processing filtering.
Off-the-Shelf vs. Bespoke Integrated Camera System
| Feature / Requirement | Standard Box Camera Setup | Bespoke Integrated Camera System |
|---|---|---|
| Physical Footprint | Bulky camera body + external light bracket + external power supplies | Single compact unit tailored to exact machine space |
| Lighting Integration | Separate external units; risk of alignment drift over time | Embedded, factory-calibrated lighting target alignment |
| Cabling Complexity | Multiple cables (data, trigger, power, light power) | Consolidated single-cable or custom connector layout |
| Environmental Protection | Requires custom external secondary enclosure | Housing natively engineered to IP65/67 standards |
| Bespoke Functionality | Limited to standard factory options | Purpose-built power, optical, and mechanical specs |
Tailored Solutions for Any Industry
Our custom vision engineering services support OEMs, system integrators, and manufacturers across a diverse spectrum of industries:
- Automotive & Heavy Industry: Ruggedised, high-vibration cameras for robotic welding, weld-seam tracking, and inline assembly verification.
- Medical Devices & Life Sciences: Ultra-compact, cleanroom-compatible cameras with specialised LED spectra for diagnostic fluid analysis or surgical imaging.
- 3C Electronics & Semiconductor: High-resolution micro-inspection devices with specialised low-angle dome lighting for surface defect detection.
- Logistics & Packaging: Integrated barcoding and volume-measurement heads built into conveyor frameworks.
- Food & Agriculture: Washdown IP69K-rated cameras equipped with specialised NIR (Near Infrared) lighting for quality grading.
Consult with Our Engineering Team
Whether you are designing a new high-volume OEM machine or attempting to solve a challenging inspection problem on an existing production line, our team can help you design and manufacture the ideal camera solution.
We work with clients from initial feasibility study and CAD prototyping through to full small- or large-batch production.
Get Started with a Free, No-Obligation Consultation
Contact our machine vision specialists today to discuss your application requirements, physical constraints, and target specifications.
- Engineering Consultation: Discuss your application parameters with an imaging expert.
- Feasibility & Sample Testing: Evaluate optic and lighting configurations tailored to your sample parts.
- Custom Proposal: Receive a clear project roadmap, CAD design concept, and cost breakdown.
Contact us to schedule your free technical discussion.
